Hydraulic Drive

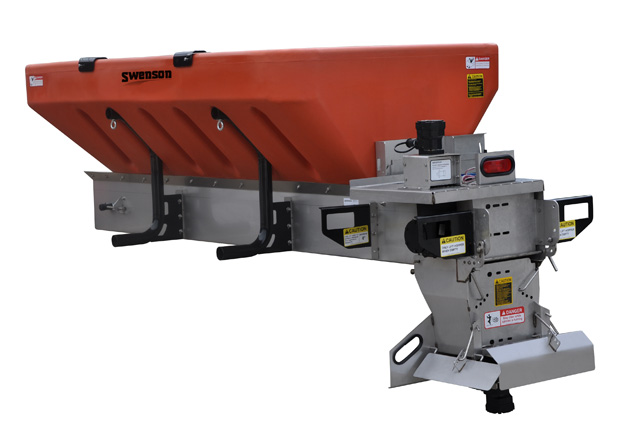

Polyhawk PV Spreader

Highlights

  • Designed for ¾ ton trucks with central hydraulic system and 6 or 8 foot bed
  • One piece polyethylene hopper resists corrosion to extend the life of your spreader
  • Separate hydraulic motors allow for independent drive train and spinner control
    *Requires central hydraulic system-no controls supplied

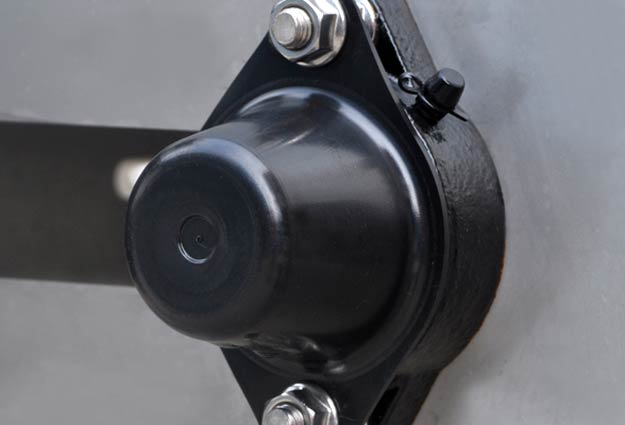

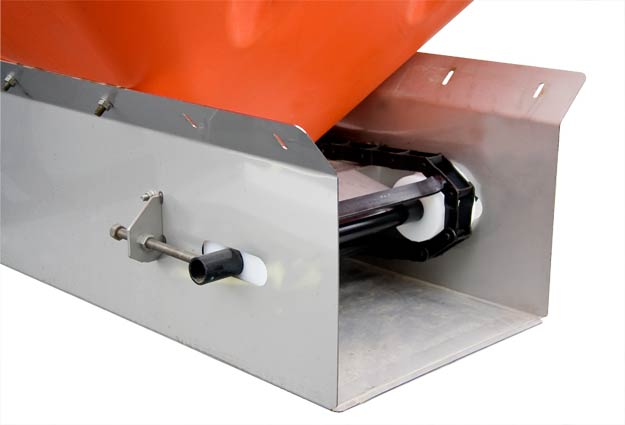

  • Inverted vee and maintenance-free front idler roller provides trouble-free drag chain operation

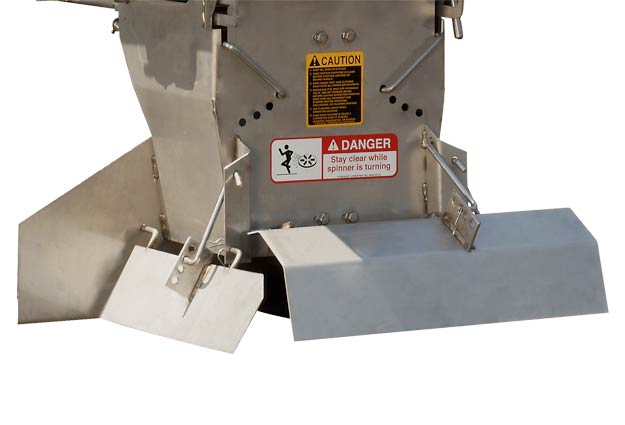

  • Four external baffles allow for precise material placement

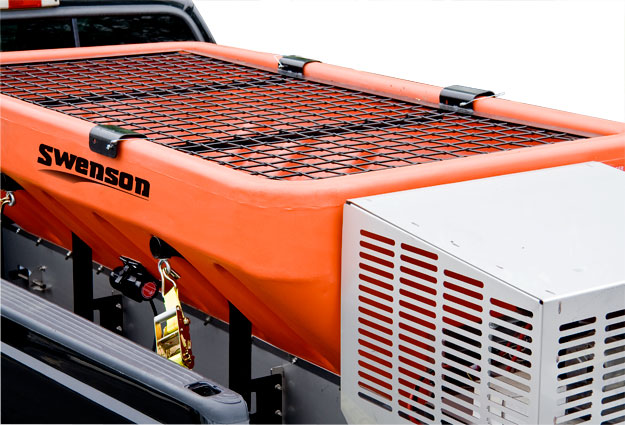

  • Drop-n-Loc top screens prevent larger chunks and debris from entering the hopper, preventing damage to the drag chain.
  • Swing up spinner system allows for easier material distribution.

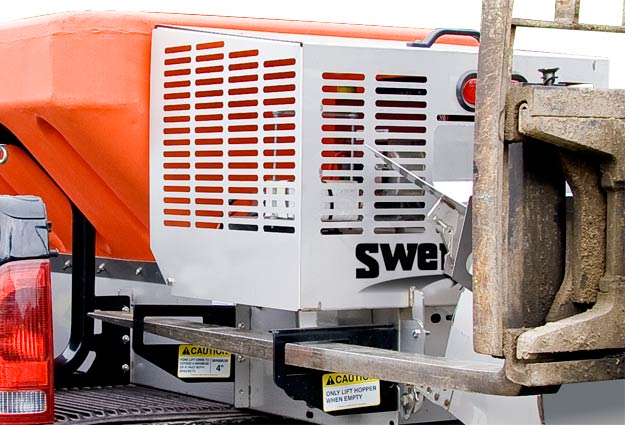

  • Integral fork pockets allow for quick installation and removal

Equipment

  • Size Specifications
    (6', 8')L x 35"H x 50"W
  • Weight
    582 and 776 lbs.
  • Capacity
    1.5 to 2.0 cu yds
  • Construction
    One piece polyethylene hopper, 10 ga. and 14 ga. stainless steel
  • Spread Width
    4 to 30 feet
  • Safety Features

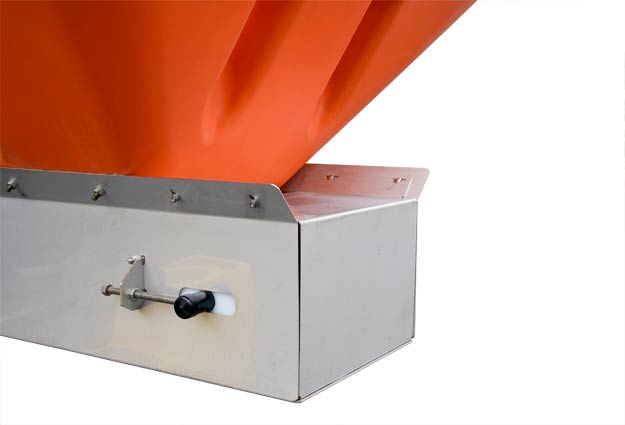

    Material top screen, safety enclosure for front bearing, third brake light, and bearing guard
  • Warranty Details
    10 years on hopper and idler bearing
  • Options

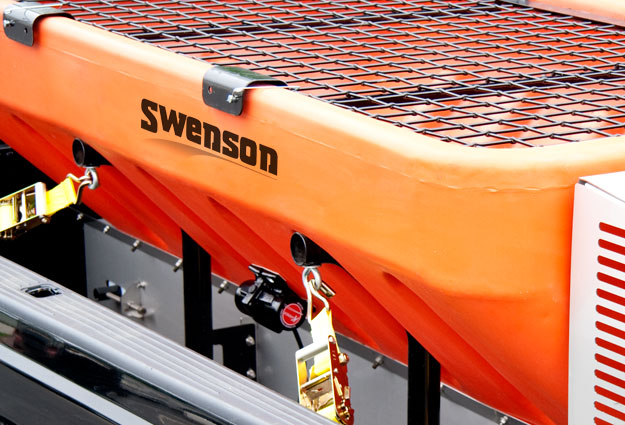

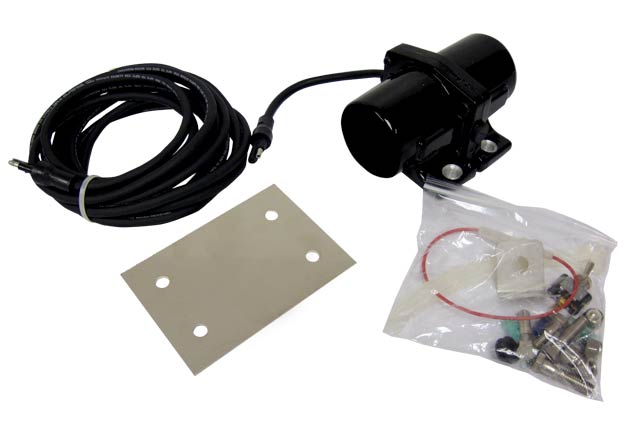

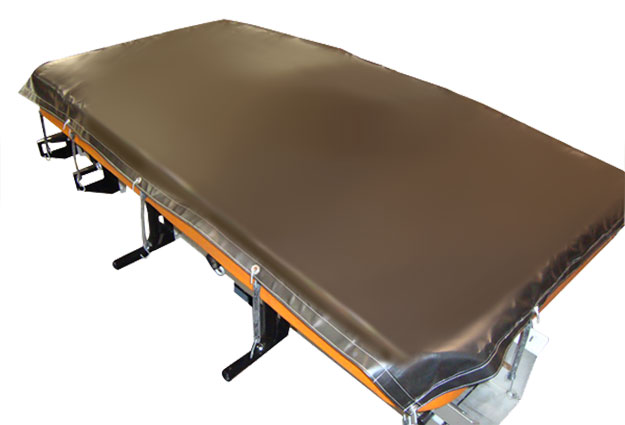

    Tarp kit, tie down kit, vibrator kit

Materials

Rock Salt • Sand • Salt / Sand Mix • 3/8 Chips • Magnesium Chloride • Treated Rock Salt • Clear Path Ice Melt

Standard Models

Part # Description Length Width Height Capacity Weight Construction
00002-626-03 Polyhawk PV356 hydraulic driven spreader, wired controller 6' 1.5 cu yd 582 lb Molded poly
00002-560-04 Polyhawk PV358 hydraulic driven spreader, wired controller 8' 2.0 cu yd 776 lb Molded poly
00002-626-04 Polyhawk PV356 dual motor electric spreader, with two sealed 12V electric motors, wired controllers 6' 1.5 cu yd 641 lb Molded poly
00002-626-01 Polyhawk PV356 gas driven spreader, 10.5 hp Briggs & Stratton motor, wireless controller 6' 1.5 cu yd 641 lb Molded poly
00002-626-02 Polyhawk PV356 gas driven spreader, 11hp Honda motor, wireless controller 6' 1.5 cu yd 641 lb Molded poly
00002-560-07 Polyhawk PV358 dual motor electric motor spreader, two sealed 12V motors, wireless controller 8' 2.0 cu yd 855 Molded poly
00002-560-01 Polyhawk PV358 gas driven spreader, 10.5hp Briggs & Stratton motor, wireless controller 8' 2.0 cu yd 855 lb Molded poly
00002-560-02 Polyhawk PV358 gas driven spreader, 11hp Honda motor, wireless controller 8' 2.0 cu yd 855 lb Molded poly
