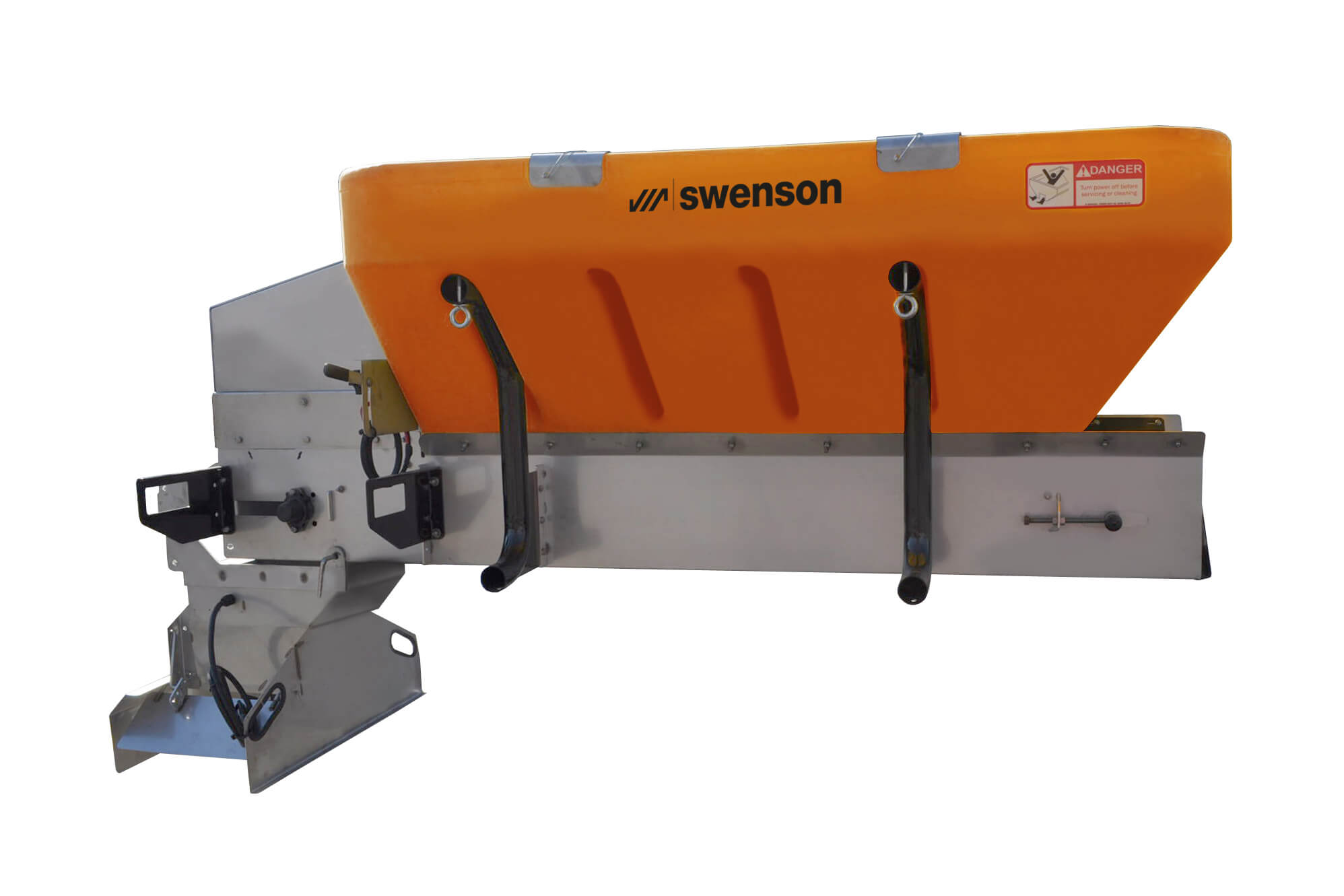

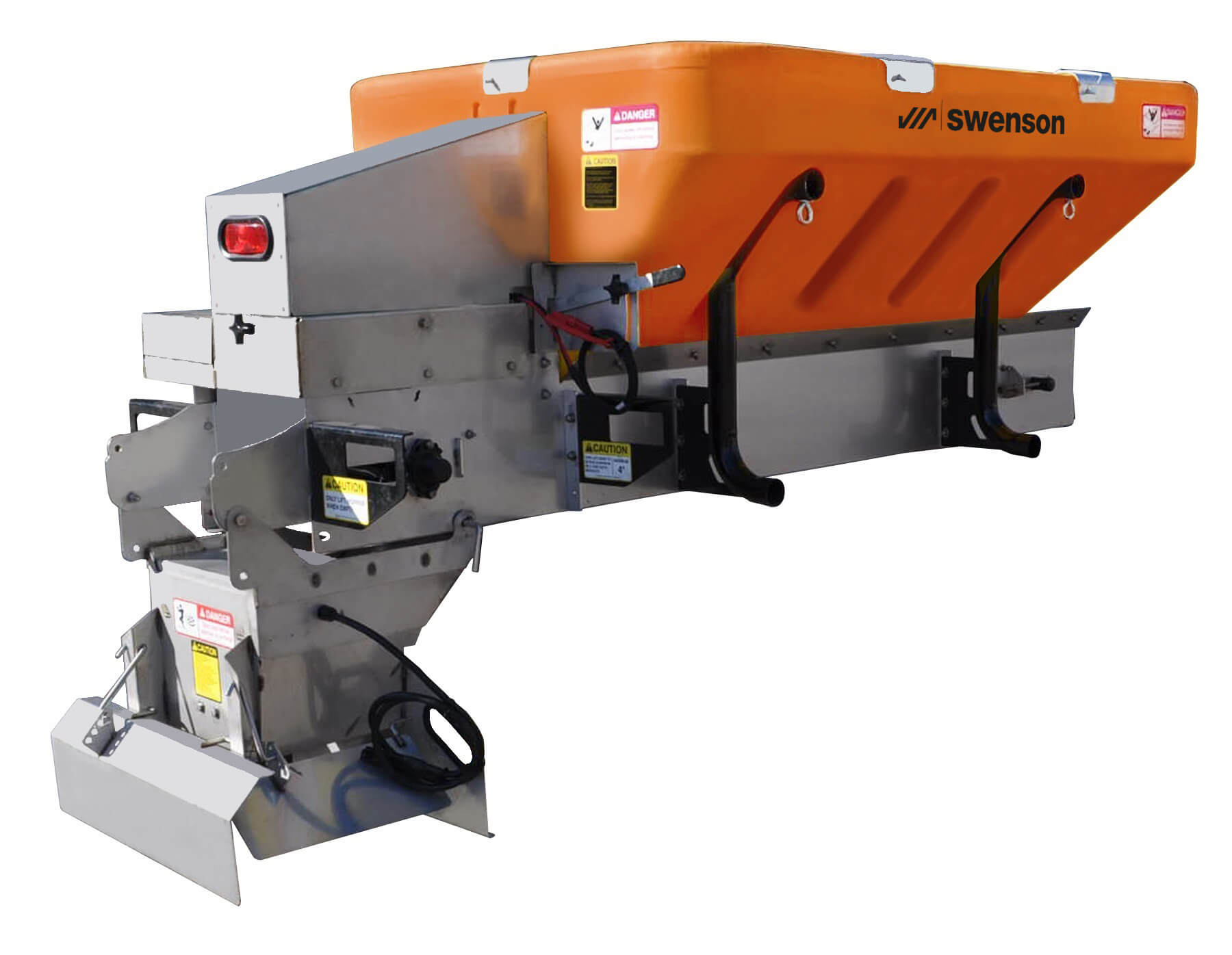

Dual Motor Electric Drive

Polyhawk PV Spreader

Highlights

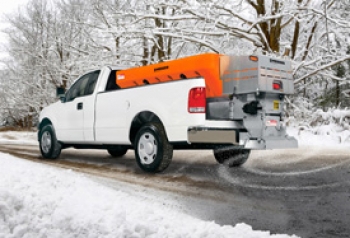

  • Designed for ¾ ton trucks with 6 and 8 foot beds
  • One piece polyethylene hopper resists corrosion to provide longer life

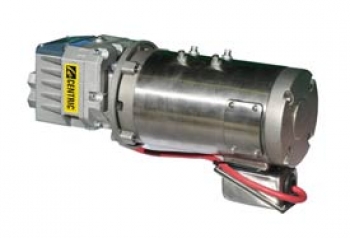

  • Two industrial grade 12V DC motors power the drag chain and spinner for maintenance-free operation
  • Hard wired in-cab dual function control

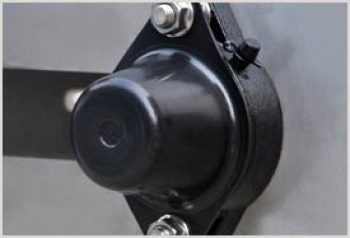

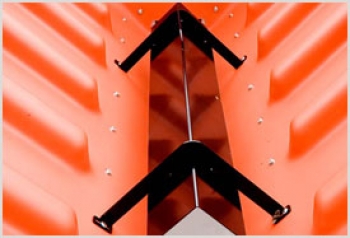

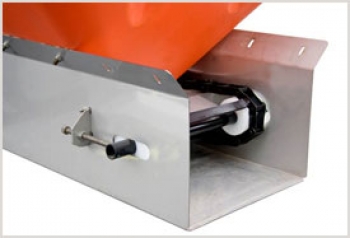

  • Inverted vee and maintenance-free front idler roller provides trouble-free drag chain operation
  • Four external baffles allow for precise material placement
  • Drop-n-Loc top screens prevent larger chunks and debris from entering the hopper, preventing damage to the drag chain.
  • Swing up spinner system allows for easier material distribution.

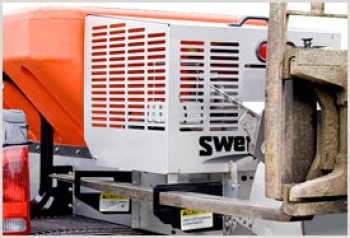

  • Integral fork pockets allow for quick installation and removal

Equipment

  • Size Specifications
    (6', 8')L x 35"H x 50"W
  • Weight
    641 or 855 lbs.
  • Capacity
    1.5 or 2.0 cu.yds.
  • Construction
    One piece polyethylene hopper; 10 and 14 ga. stainless steel
  • Spread Width
    4 to 20 feet
  • Spinner Disk
    13" poly
  • Safety Features

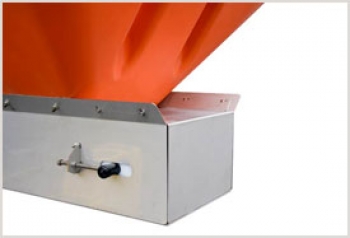

    Material top screen, safety enclosure for front bearing, drive chain guard, motor shroud, third brake light, and bearing guard
  • Warranty Details
    10 years on hopper and idler bearing
  • Options

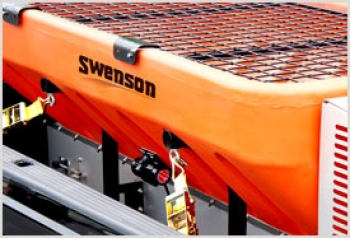

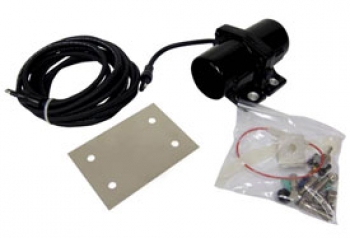

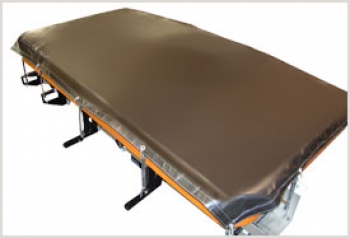

    Tarp kit, tie down kit, vibrator kit

Materials

Rock Salt • Sand • Salt / Sand Mix • Magnesium Chloride • Treated Rock Salt • Clear Path Ice Melt

Standard Models

Part # Description Length Width Height Capacity Weight Construction
00002-626-04 Polyhawk PV356 dual motor electric spreader, with two sealed 12V electric motors, wired controllers 6' 1.5 cu yd 641 lb Molded poly
00002-560-07 Polyhawk PV358 dual motor electric motor spreader, two sealed 12V motors, wireless controller 8' 2.0 cu yd 855 Molded poly
00002-626-01 Polyhawk PV356 gas driven spreader, 10.5 hp Briggs & Stratton motor, wireless controller 6' 1.5 cu yd 641 lb Molded poly
00002-626-02 Polyhawk PV356 gas driven spreader, 11hp Honda motor, wireless controller 6' 1.5 cu yd 641 lb Molded poly
00002-626-03 Polyhawk PV356 hydraulic driven spreader, wired controller 6' 1.5 cu yd 582 lb Molded poly
00002-560-01 Polyhawk PV358 gas driven spreader, 10.5hp Briggs & Stratton motor, wireless controller 8' 2.0 cu yd 855 lb Molded poly
00002-560-02 Polyhawk PV358 gas driven spreader, 11hp Honda motor, wireless controller 8' 2.0 cu yd 855 lb Molded poly
00002-560-04 Polyhawk PV358 hydraulic driven spreader, wired controller 8' 2.0 cu yd 776 lb Molded poly
