Direct Drive

Under Tailgate Spreaders – SA Series

Highlights

  • Designed for 15,000+GVW trucks with ground clearances greater than 44”

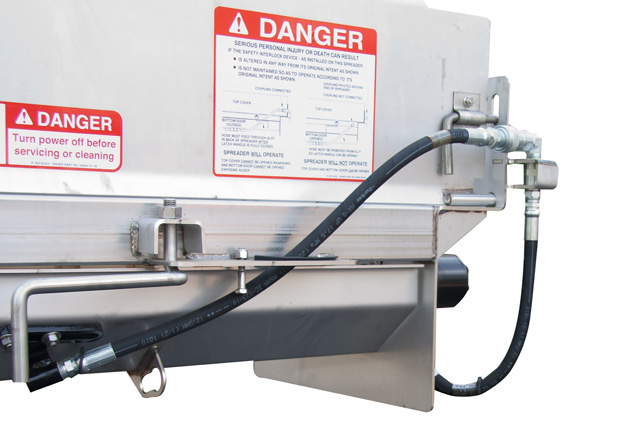

  • Hydraulic safety interlock system disables auger when you open bottom door
  • Hinged bottom door makes clean out and blockage removal easy
  • Spinner stays parallel to the road even when the dump body is raised
  • Material drop port is located 21” from left end plate

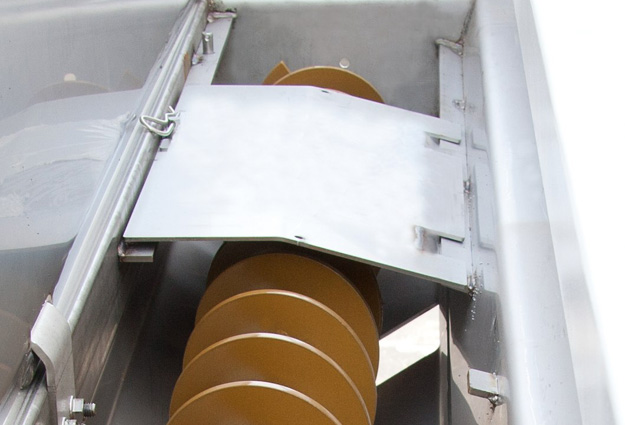

  • Anti-flow plates save material by preventing free-flowing of material

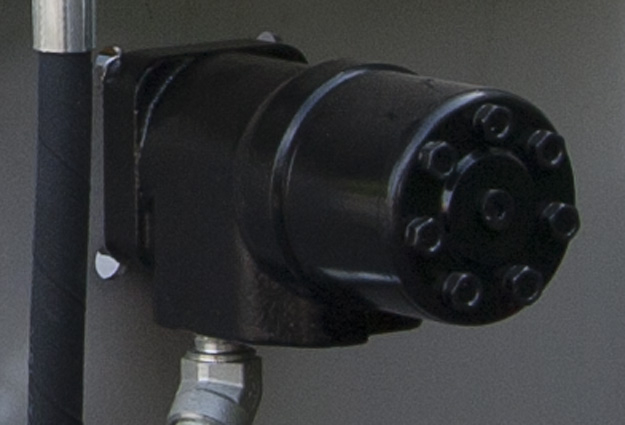

  • Available with direct drive auger motor for higher performance and lower maintenance
  • Available with gearbox-driven auger motor for better control
  • Separate hydraulic motors for auger and spinner allows for better control
  • Unit mounts below dump body floor to allow normal dump body operations when spreader is not in use

Equipment

  • Size Specifications
    96" wide x 19" tall x 18" deep
    540 lb
  • Capacity
    N/A
  • Construction
    Corrosion Resistant Stainless or Painted Carbon Steel
  • Flow Rate
    4' to 40' spread pattern, 15 lbs/revolution
  • Steel Gauges
    7 gauge
  • Safety Features
    Hydraulic Interlock System
  • Warranty Details
    1 year
  • Options

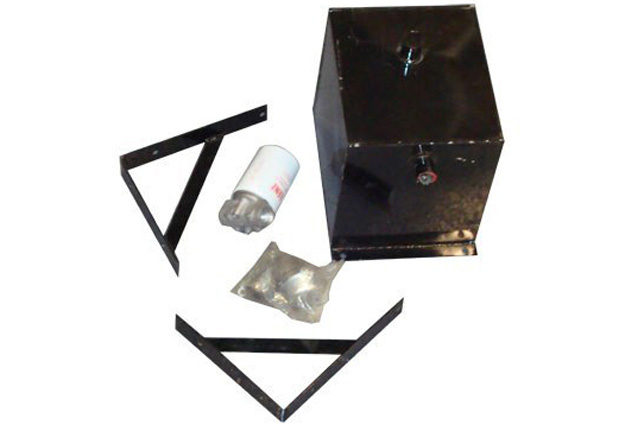

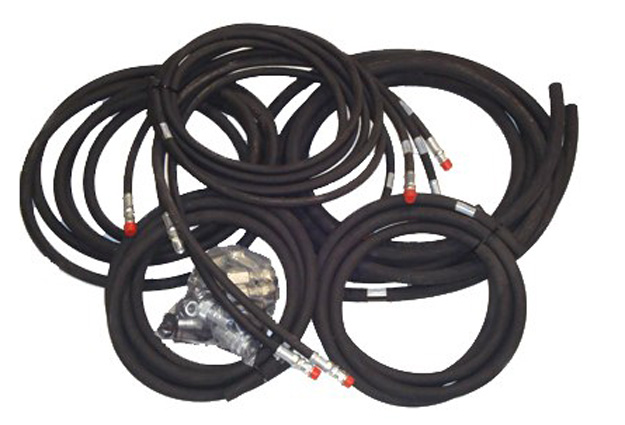

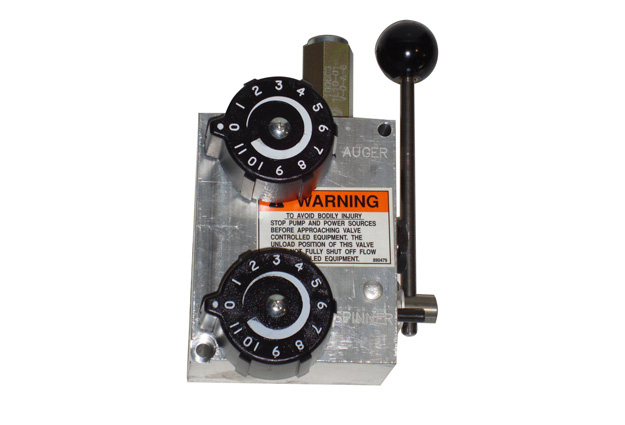

    Dual Flow Control Valve Controller, Central Hydraulic Hose Kit, Central Hydraulic 7 Gallon Tank Kit

Materials

Rock Salt • Sand • Salt / Sand Mix • Magnesium Chloride • Treated Rock Salt • Clear Path Ice Melt
