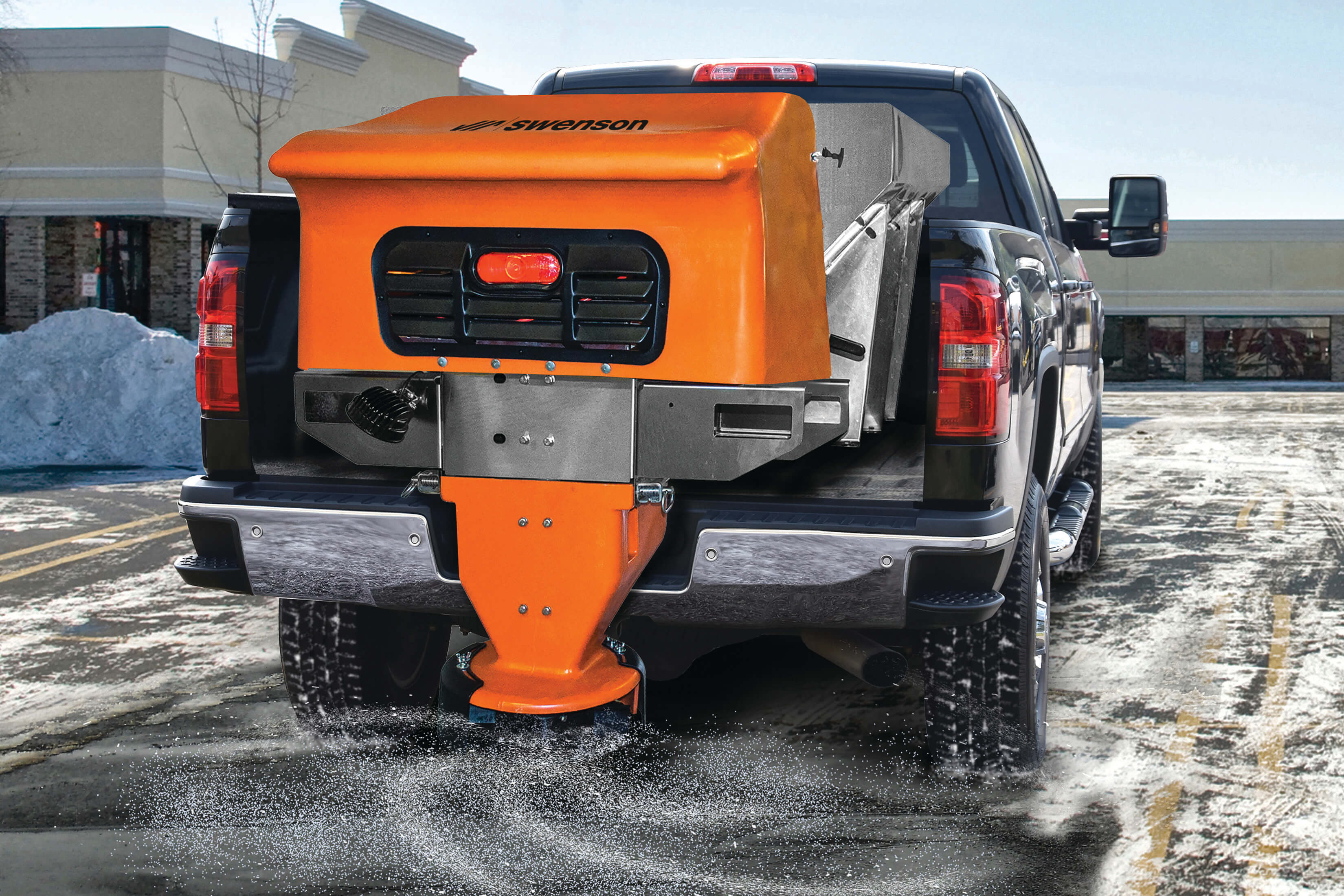

PV-SELECT Professional Series V-Box Spreaders

Highlights

  • Designed for light duty, medium duty pickup, and flatbed trucks.
  • Ideal for use by municipality fleets, landscapers, and other contractors.
  • Available in 6 and 8-foot hopper lengths.
  • Available in hydraulic, dual motor electric, or gas drive options, with drag chain or belt over chain conveyor choices.
  • More maintenance-free materials provide added strength and durability to protect against harsh weather and corrosive chemicals.
  • Bolt-in replaceable floor is easy to maintain.
  • Full length rubber chain shields eliminate leaking material.
  • Second chain wiper removes residual material on the drag chain bar flights.

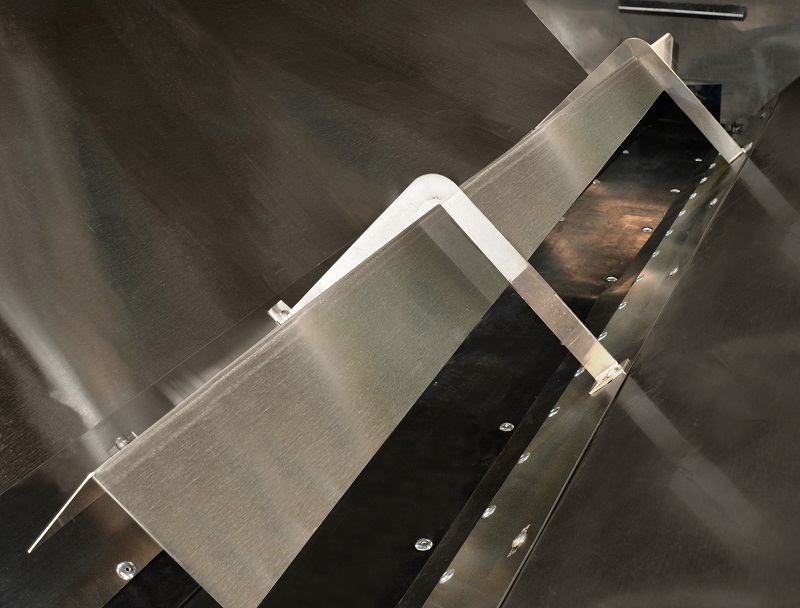

  • Tapered inverted-v moves center of gravity to the middle of the chassis, making the way the material moves safer.
  • Chain tensioner on the drive chain keeps constant tension on the spring eliminating frequent manual adjustments.
  • Tapered feedgate operates smoothly every time.

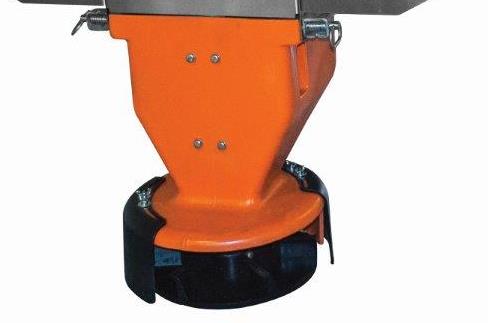

  • Light poly spinner has formed handles and quick pin connector for fast attachment and removal.
  • Coned center hub provides better balance, prevents material build up around the spinner shaft. Interrupted directional flights on spinner provides more consistent spreading.
  • Various spinner heights available to accommodate truck bed height.
  • Drop-n-Loc style sectional top screens are easier to remove and feature corner lift points for safer lifting. Recessed edges prevent interference from added accessories.
  • 10 year warranty on poly idler assembly; 1 year on spreader

Equipment

  • Size Specifications
    6 ft., 8 ft.
  • Capacity
    1.5 cu.yd., 2.0 cu.yd.
  • Construction
    10 gauge with 7 gauge sides/longitudinals
    12 gauge with 10 gauge sides/longitudinals
    Carbon or maintenance-free stainless steel
  • Drive
    Hydraulic
    Dual motor electric
    Gas
  • Conveyor
    Drag chain
    Belt-over-chain
  • Disc
    14” poly
  • Spread Width
    Up to 30 feet
  • Top Screens
    Drop-n-Loc sectional carbon top screens
  • Warranty Details
    Poly idler assembly 10 years
    Spreader 1 year
  • Options
    Tarp kit, side extensions, vibrator kit, tie down kit

Materials

Rock Salt • Sand • Salt / Sand Mix
