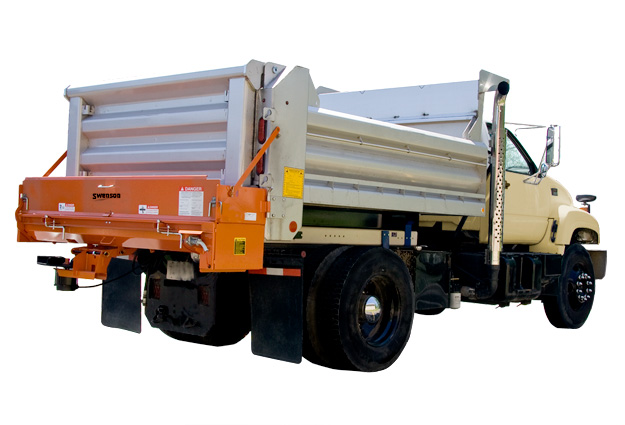

SEL™ Series Electric Undertailgate Spreaders

Highlights

  • Designed for 15,000 + GVW Trucks with ground clearances greater than 44"
  • Utilizes your truck’s electric system instead of an expensive hydraulic system
  • Draws 80 amps total

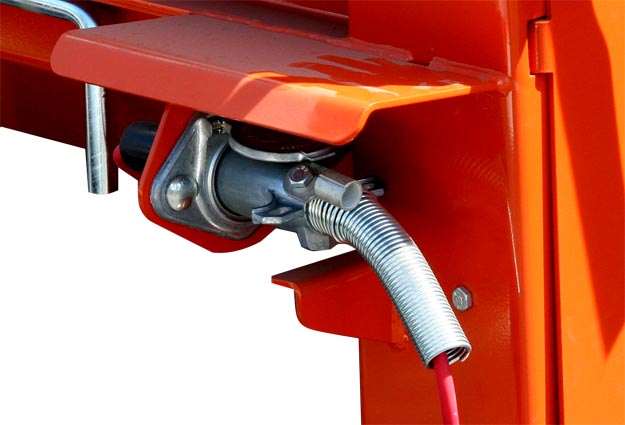

  • Patent pending Electric Interlock System (EIS) permits you to disable the auger when opening bottom door
  • Separate electric motors allow independent control of the auger and spinner
  • Unit mounts below dump body bed to allow normal dump body operations when spreader is not in use

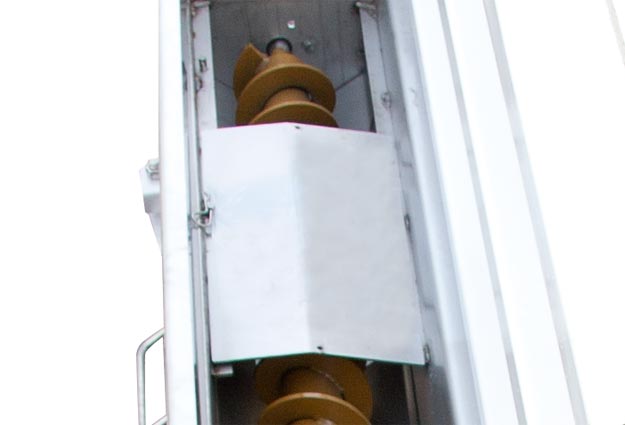

  • Anti-flow plate prevents material free flow and helps minimize material waste

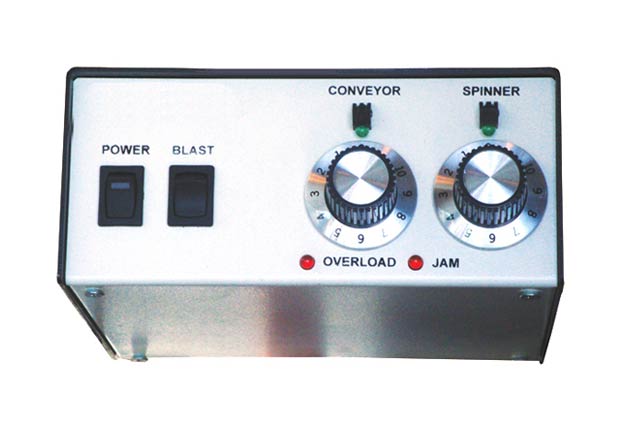

  • Dual speed variable controller allows for independent control of the auger and the spinner disk

Equipment

  • Size Specifications
    96" wide x 19" tall x 18" deep
    455 lbs
  • Capacity
    N/A
  • Construction
    Corrosion Resistant Stainless or Painted Carbon Steel
  • Flow Rate
    4' to 40' spread pattern
  • Steel Gauges
    10 gauge trough
  • Safety Features
    Electric Interlock System
  • Warranty Details
    1 year
  • Options
    Center Drop, Left Drop

Materials

Rock Salt • Sand • Salt / Sand Mix • Magnesium Chloride • Treated Rock Salt • Clear Path Ice Melt
